A damaged cabinet hinge can quickly turn into a frustrating problem. When hinge screws repeatedly come loose, the surrounding wood, MDF, or particleboard may become stripped or cracked, leaving the cabinet door sagging or difficult to close. Installing a cabinet hinge repair plate can reinforce the damaged area and give the hinge a stronger mounting surface. However, getting a reliable result depends on choosing the correct plate and installing it accurately. Before buying anything, you should identify your existing hinge, measure the screw-hole spacing, check the plate dimensions, and confirm compatibility. In this guide, you will learn how to get a cabinet hinge repair plate installed correctly, from identifying the damaged hardware to choosing a replacement and avoiding common installation mistakes. You will also find practical tips for concealed, European-style, and standard cabinet hinges.
What Are You Replacing?↓
A cabinet hinge repair plate is designed to repair or reinforce the area where a cabinet hinge attaches to the door or cabinet frame. It becomes particularly useful when the original screw holes have become too large or the surrounding material has cracked.
You may need a repair plate if:
- Cabinet hinge screws keep coming loose.
- The cabinet door has started sagging.
- Existing screw holes are stripped.
- MDF or particleboard has broken around the hinge.
- The hinge has pulled away from the cabinet.
- The original mounting area no longer holds screws securely.
- The cabinet door does not close properly because the hinge has moved.
If your hinge is repeatedly becoming loose but the mounting material is still in good condition, first understand the possible causes in our guide on why cabinet hinges keep coming loose.
A repair plate is most useful when the hinge itself is still functional but the mounting surface has become weak.
Measure the Existing Hardware ↓
Before purchasing a repair plate, remove or loosen the existing hinge and inspect the mounting area carefully.
Start by measuring the existing hardware. Record:
- Distance between screw holes
- Hinge width and length
- Hinge cup diameter, if applicable
- Distance from the cabinet edge
- Door thickness
- Cabinet panel thickness
- Hinge mounting position
- Overlay or inset configuration
If you have a concealed European hinge, check the hinge cup as well as the mounting plate. Many concealed cabinet hinges use a 35 mm cup, but you should measure instead of assuming the size.
Take a photo of the existing hinge before removing it completely. A clear photograph can help you compare the old hinge with the repair plate when shopping online.
If you are looking for a standard repair solution, see our detailed guide to cabinet hinge repair plates for additional information.
Important Dimensions ↓
Correct dimensions are essential when getting a cabinet hinge repair plate installed.
The most important measurements include:
Plate Size
Measure the length and width of the damaged area. The repair plate should cover the damaged section adequately without interfering with the cabinet frame or door movement.
Screw-Hole Spacing
Measure from the center of one screw hole to the center of the next. Do not estimate spacing from the outside edges of the holes.
Hinge Cup Diameter
For concealed hinges, measure the circular hinge cup installed in the cabinet door. A 35 mm cup is common, but other sizes are available.
Edge Distance
Measure the distance between the hinge mounting position and the edge of the cabinet or door. Incorrect positioning can affect door alignment.
Door and Panel Thickness
Check the thickness of the cabinet door and side panel before selecting screws. Screws that are too long may penetrate through the material.
A repair plate can have multiple mounting holes to accommodate different hinge configurations, but multiple holes do not automatically make a plate compatible with every hinge.
How to Identify the Type ↓
Before selecting a repair plate, determine which type of cabinet hinge you have.
European Hinges
European hinges are common in modern kitchen cabinets. They are usually concealed when the door is closed and often use a circular cup installed into the back of the cabinet door.
If your cabinet uses this design, read our guide to European hinge repair plates before purchasing a replacement.
Concealed Hinges
Concealed hinges are hidden from view when the cabinet door is closed. They can use different mounting plates, screw patterns, overlays, and adjustment mechanisms.
If you have this type, our guide to concealed hinge repair plates can help you understand the available repair options.
Surface-Mount Hinges
Traditional surface-mount hinges attach directly to the visible surface of the cabinet door and frame. These hinges may require a different reinforcement solution than concealed hinges.
Partial-Overlay and Full-Overlay Hinges
Overlay describes how much the cabinet door covers the cabinet frame. The correct hinge and repair plate must maintain the original door position.
Do not select a repair plate based only on appearance. Always compare the dimensions and mounting pattern.
Compatibility Checklist ↓
Before ordering your cabinet hinge repair plate, check each of these points:
- Correct hinge type
- Correct plate dimensions
- Matching screw-hole pattern
- Suitable screw spacing
- Appropriate plate thickness
- Correct hinge cup compatibility
- Suitable screw length
- Enough coverage over the damaged area
- Correct door or cabinet-side application
- Compatible overlay or inset configuration
- Adequate material strength around the repair
If the damaged area is extremely large, cracked, or crumbling, a small repair plate may not provide enough structural support. In that situation, you may need to rebuild or reinforce the damaged cabinet material before installing the hinge.
Replacement Options ↓
You have several options when repairing a damaged cabinet hinge.
1. Standard Cabinet Hinge Repair Plate
This is a good option when the damaged area is relatively small. The metal plate covers the damaged mounting area and creates additional material for securing the hinge.
2. Cabinet Hinge Reinforcement Plate
A larger reinforcement plate can distribute the hinge load over a wider area. This can be useful when the original cabinet material has suffered more extensive damage.
You can learn more about this option in our guide to cabinet hinge reinforcement plates.
3. European Hinge Repair Plate
This is suitable when you have a European-style concealed hinge and the repair plate matches its mounting configuration.
4. Concealed Hinge Repair Plate
A concealed hinge repair plate is designed around the requirements of hidden cabinet hinges. Always verify the mounting pattern before buying.
5. Replace the Complete Hinge
If the hinge mechanism is bent, broken, rusty, or worn out, repairing the mounting surface may not solve the entire problem. In that case, replacing the hinge may be the better option.
Installation ↓
Once you have selected a compatible plate, installing it correctly is important for long-term performance.
Step 1: Remove the Cabinet Door
Support the cabinet door before removing the hinge screws. Cabinet doors can be heavier than they appear, particularly larger kitchen doors.
Carefully remove the hinge from the damaged mounting area.
Step 2: Clean the Damaged Area
Remove loose pieces of wood, dust, and debris. The repair plate needs to sit flat against the cabinet surface.
Do not install the plate over loose or unstable material.
Step 3: Position the Repair Plate
Place the repair plate over the damaged hinge area.
Align the hinge position with the appropriate holes in the repair plate. Check that the plate does not interfere with the cabinet edge or door movement.
Step 4: Mark the Screw Holes
Hold the plate firmly in the correct position and mark the holes that will be used.
Check the alignment from multiple angles before drilling or installing screws.

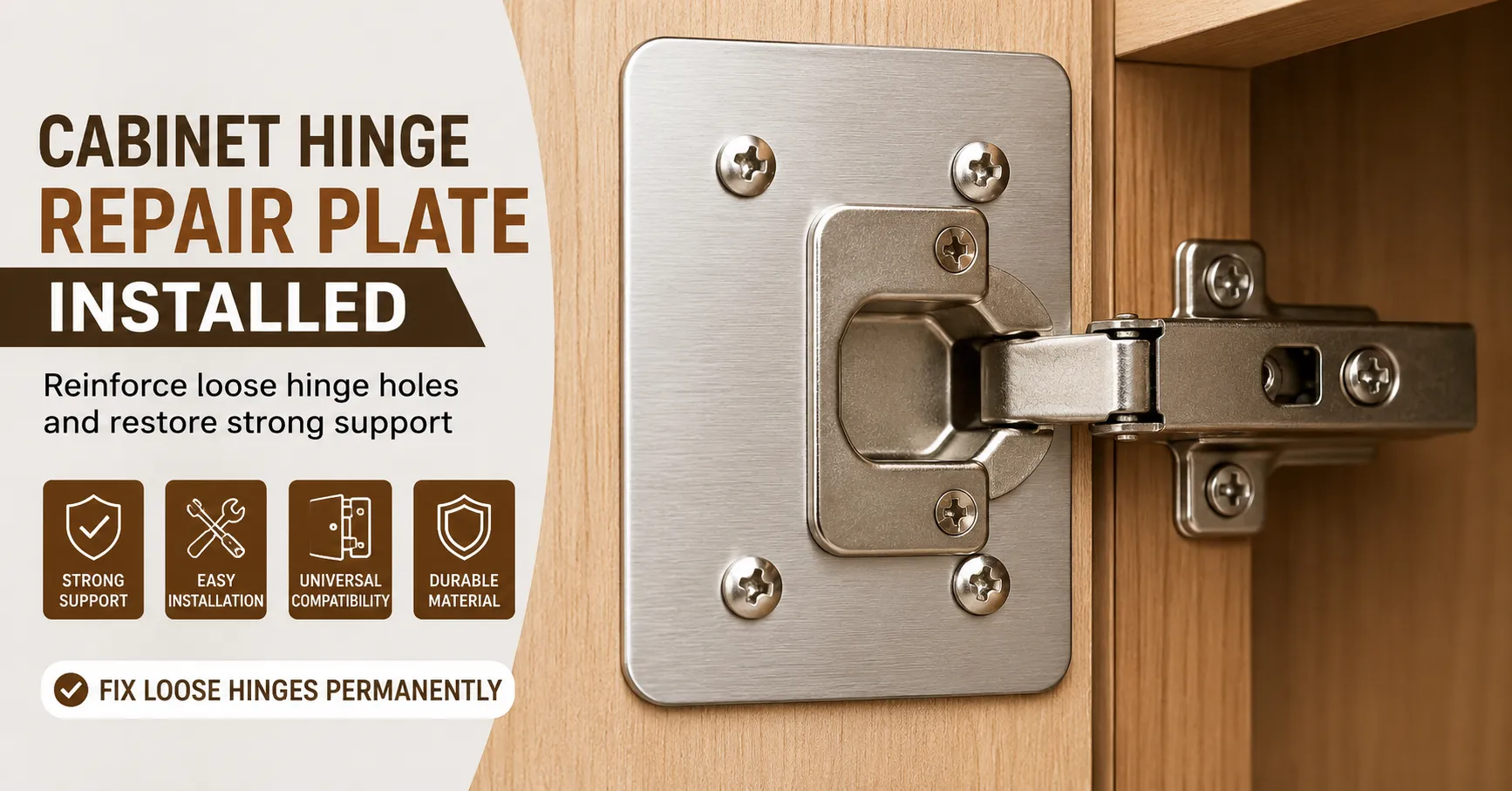

Step 5: Install the Repair Plate
Use the appropriate screws for your cabinet material and the repair plate.
Start by installing the screws loosely. Once the plate is correctly positioned, tighten them gradually and evenly.
Avoid excessive force because overtightening can damage MDF, particleboard, or other cabinet materials.
Step 6: Reinstall the Hinge
Place the cabinet hinge over the repair plate and install the hinge screws.
Make sure the hinge sits flat and that all mounting points are properly aligned.
Step 7: Reattach the Cabinet Door
Carefully reinstall the door. If your cabinet uses adjustable concealed hinges, make the necessary vertical, horizontal, and depth adjustments.
Step 8: Test the Door
Open and close the cabinet several times.
Check whether:
- The door sits level.
- The hinge remains firmly attached.
- The door closes without rubbing.
- The gaps around the door are even.
- The repair plate remains stable.
- The screws stay tight.
If everything operates smoothly, the cabinet hinge repair plate installed project is complete.
Common Compatibility Mistakes ↓
Even a high-quality repair plate can fail when the wrong product or installation method is used.
Buying Without Measuring
The most common mistake is ordering a plate before measuring the existing hinge. Similar-looking plates can have different hole patterns.
Assuming Universal Compatibility
Some products advertise multiple mounting holes, but this does not mean they work with every cabinet hinge.
Using the Wrong Screws
Screws that are too short may not provide enough grip. Screws that are too long can damage the cabinet or pass through the panel.
Installing the Plate Off-Center
A plate positioned incorrectly can change the hinge location and cause the cabinet door to sit unevenly.
Ignoring Existing Damage
A repair plate cannot compensate for severely deteriorated cabinet material. If the surrounding wood or board has completely failed, additional repair may be required.
Choosing the Wrong Hinge Type
A European hinge repair plate may not be appropriate for a traditional surface-mounted hinge. Always identify your hinge first.
Overtightening Screws
Too much torque can strip the cabinet material again. Tighten the screws securely but avoid excessive force.
Recommended Products ↓
If you are purchasing through Amazon, search for repair plates that match your measured dimensions and hinge configuration.
Recommended Amazon category/search:
Cabinet Hinge Repair Plate Products on Amazon
When comparing Amazon products, pay attention to:
- Stainless-steel or durable metal construction
- Plate dimensions
- Number and position of mounting holes
- Included screws
- Hinge compatibility
- Door-side or cabinet-side installation
- Number of plates in the package
- Customer feedback about installation and fit
Recommended Cabinet Hinge Repair Plate Products
Choosing the right repair plate depends on the type and severity of your cabinet hinge damage. Instead of selecting a product based only on appearance, compare the plate size, material, hole pattern, hinge compatibility, and included hardware.
Product 1: Cabinet Hinge Repair Plate — Best for Stripped Screw Holes
A standard cabinet hinge repair plate is a practical choice when the existing hinge screws no longer grip the cabinet material properly. The plate covers the damaged mounting area and provides additional screw positions for securing the hinge.
Best for: Stripped or enlarged hinge screw holes
Look for: Multiple mounting holes, suitable dimensions, and compatible screws
Ideal user: DIY homeowners repairing common cabinet hinge damage
Amazon: View Cabinet Hinge Repair Plates on Amazon
Product 2: Stainless Steel Hinge Repair Plate — Best for Durability
A stainless-steel repair plate can be a good option when you want a corrosion-resistant and durable reinforcement around the hinge mounting area. The rigid metal construction can help distribute the load across a wider section of the cabinet material.
Best for: Durability and stronger reinforcement
Look for: Stainless-steel construction, adequate thickness, and a suitable screw-hole pattern
Ideal user: Kitchens, utility cabinets, and frequently used cabinet doors
Amazon: Stainless Steel Cabinet Hinge Repair Plates on Amazon
Product 3: European Hinge Repair Plate — Best for Concealed European Hinges
If your cabinet uses a European-style concealed hinge, choose a repair plate specifically designed around that hinge configuration. These plates can help restore a damaged mounting area while maintaining the original hinge position.
Before purchasing, compare the hinge cup size, mounting-hole spacing, plate dimensions, and cabinet-door configuration.
Best for: European-style concealed cabinet hinges
Look for: Compatible hinge mounting pattern and correct dimensions
Ideal user: Kitchen cabinets with concealed European hinges
For more information about this type of repair, see our guide to European hinge repair plates.
Amazon: European Hinge Repair Plates on Amazon
Product 4: Cabinet Hinge Reinforcement Plate — Best for Larger Damaged Areas
A cabinet hinge reinforcement plate is worth considering when the damaged area extends beyond a few stripped screw holes. A larger plate can spread the hinge load across more of the cabinet surface.
However, a reinforcement plate should not be treated as a solution for severely crumbling or structurally failed cabinet material. Inspect the surrounding area before installation.
Best for: Larger damaged or weakened hinge mounting areas
Look for: Wider plate coverage, strong construction, and compatible mounting holes
Ideal user: Cabinets where the hinge mounting area needs additional reinforcement
Read our dedicated guide to cabinet hinge reinforcement plates before choosing this option.
Amazon: Cabinet Hinge Reinforcement Plates on Amazon
Quick Comparison
| Product Type | Best For | Main Advantage | Check Before Buying |
|---|---|---|---|
| Cabinet Hinge Repair Plate | Stripped screw holes | Simple repair | Hole pattern and dimensions |
| Stainless Steel Repair Plate | Durability | Rigid, corrosion-resistant construction | Material thickness and screw compatibility |
| European Hinge Repair Plate | Concealed European hinges | Designed around concealed hinge configurations | Hinge type, cup size, and mounting pattern |
| Cabinet Hinge Reinforcement Plate | Larger damaged areas | Wider load distribution | Plate coverage and cabinet material condition |
Important: Amazon listings, availability, prices, and product specifications can change. Before adding a specific product to your article, verify the current Amazon listing and replace the search links above with your Amazon Associates tracking links for the products you actually recommend.
FAQ
Can I install a cabinet hinge repair plate myself?
Yes. Most repair plates can be installed as a DIY project using basic tools, provided the surrounding cabinet material is still structurally sound.
Will a repair plate fix stripped hinge holes?
A properly selected repair plate can reinforce a damaged mounting area and provide new screw locations. However, severely damaged cabinet material may require additional repair.
Are cabinet hinge repair plates universal?
No. Some plates support multiple mounting patterns, but you should always compare the dimensions and hole spacing with your existing hinge.
Can I use one for a European hinge?
Yes, if the repair plate is designed for and compatible with your particular European hinge configuration.
What is the most common concealed hinge cup size?
A 35 mm cup is common for concealed cabinet hinges, but other sizes exist. Measure your hinge before ordering.
Should I repair or replace the hinge?
If only the mounting material is damaged and the hinge still works properly, a repair plate may be appropriate. If the hinge mechanism is damaged, replacing the hinge may be more practical.
How can I prevent the hinge from becoming loose again?
Use the correct repair plate, appropriate screws, accurate positioning, and avoid overtightening. Make sure the surrounding cabinet material is strong enough to support the hinge.
Final Thoughts
Getting a cabinet hinge repair plate installed correctly is mainly about accurate measurement, proper compatibility, and careful positioning. The repair plate itself is only one part of the solution. Before ordering, identify your hinge type, measure the screw-hole spacing, check the plate dimensions, and confirm that the product is designed for your cabinet configuration.
For a small stripped or damaged hinge area, a properly fitted repair plate can be a practical alternative to replacing an entire cabinet door. If the damage is extensive, however, inspect the cabinet material carefully and consider additional reinforcement or professional repair.
The best approach is simple: measure first, choose the correct plate, install it carefully, and test the cabinet door before considering the repair complete.
